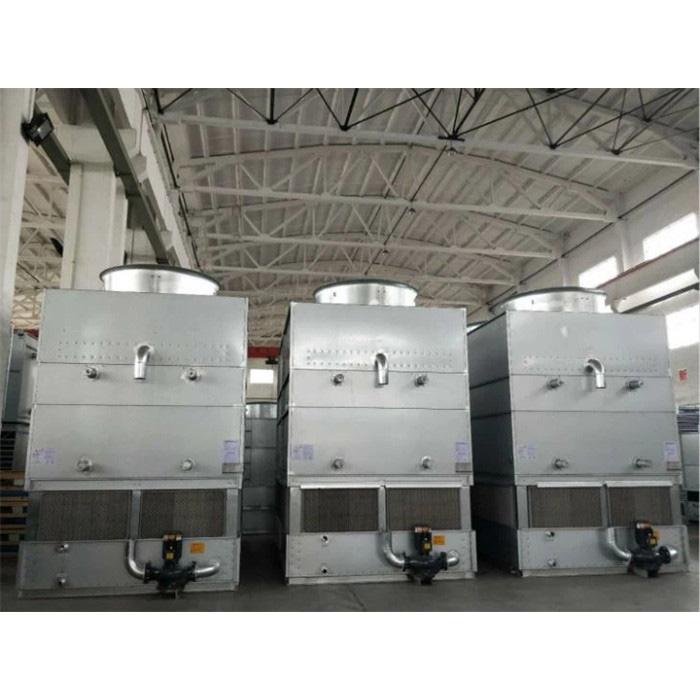

Metal Closed Type Cooling Tower description

The heat exchanger of closed cooling tower was installed in the tower, ensuring the cooling effect. Because it is a closed cycle, it can ensure that the water quality is not polluted, so it can be improved theoperation efficiency and increased the service life. When the outside temperature is low, the spray water system can be stopped to save water. Closed cooling towers are widely used in iron and steel metallurgy, power electronics, machining, air conditioning systems and other industries

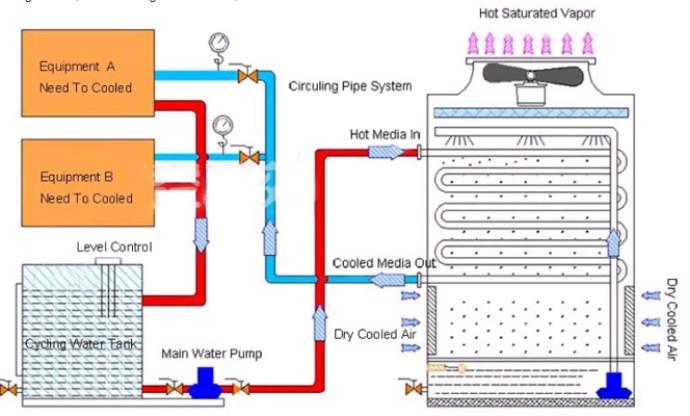

Principle of Operation

1.Spray water circulates over the coil and mixes with the outside air in an external circuit.

2.The process fluid circulates inside the coil in an internal circuit

3.During operation, heat is transferred from the internal circuit, through the coil to the spray water, and then to the atmosphere as a portion of the water evaporates.

FEATURES

Low Maintenance
Unlike most forced draft cooling towers, the GWBB cooling tower utilizes large access doors for easy entry and exit.

Low noise
All cooling towers are made of aluminum alloy axial flow fan, forward-inclined vane structure design, streamlined inlet air duct, small wind resistance, and low noise.

Long Life Construction

Rugged, corrosion-resistant galvanized steel is standard, and the S304 series stainless steel and Magnesium-plated aluminum-zinc plate housing is available as an optional upgrade to the partial or entire cooling tower structure.

ISO certified factories ensure high quality factory assembly.

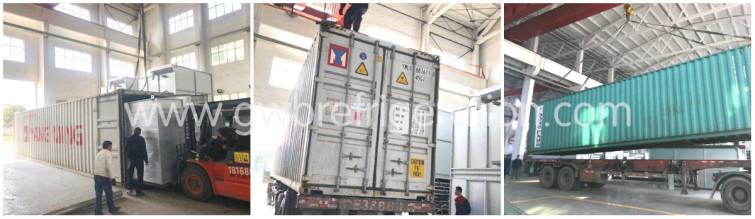

Packing & Delivery

Packing Details

1.Two body parts: upper and bottom boxes.

2.Packing with plastic film

3.Shipped by one 40ft container. Upper and bottom body parts are separated in the same container.

Delivery time:

Shipped in 30days after payment
