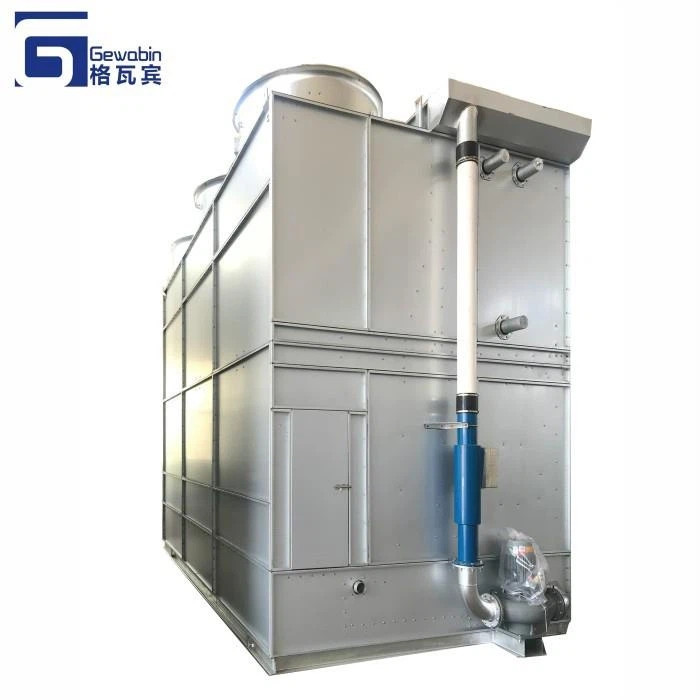

Anti-noise Square Cooling Tower compare to open cooling tower:

1. It can avoid the the fluid from being polluted.

2.The fluid flows along the coil and will not meet outside air, so it will reduce scaling inside and improve the system effectiveness.

3.It reduces the system energy cost and maintenance cost.

4.It assures that the system can run smoothly all the time.

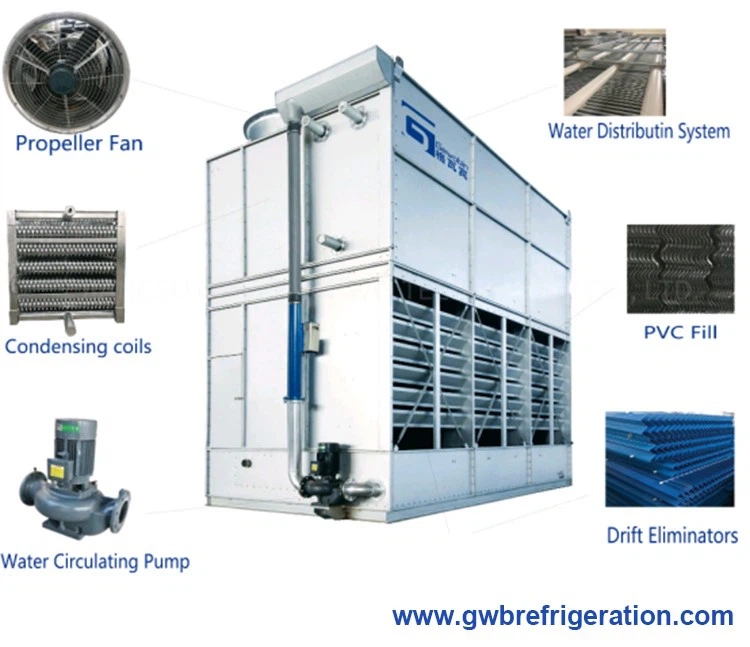

Structure and main parts of Anti-noise Square Cooling Tower

1.Condensing Coil

1) Made of high-quality seamless steel pipes. The coil unit are  made by SS-304/316L stainless steel. Maximum pressure of our coils could reach to 32Mpa.

2) Special tube arrangement ensure a smarter size and high heat-exchange rate. All tubes are tested at 2.5MPa air pressure

3)Special oval tube ensure a better contacting of water on the outer surface of the tubes

2.Axial Fan

1) Low noise with large air-flow

2) Aluminum alloy blades

3) Damp-proof motor

4) One piece molded heavy duty construction

3.Water Pump

1)Low noise & Large water flow

2)Protection level IP55, Insulation level F

3)Trouble-free operation

4.Water Distribution System

GWB cooling water spray system adopts large discharge and anti-blockage nozzles,which can ensure the cooling water furthest contact the condensing coil and hence overcome the fouling and promote the moisture to vaporize,thus improve the effect of heat transfer.

5. Removable Drift Eliminator
1)Material:specially designed non-corroding PVC
2)Advantage:remove moisture effectively from the moist air .It ia convenient to disassemble.

Main features

1. Excellent Heat Exchange Performance

the cooling tower adopt the technology of the combination of coil and stuffing to avoid the dry spot and dirt formed on the coils. so the performance of the heat exchanger is dramatically effective.

2. Convenient Maintenance

the cooling tower is designed with access door and reparing ladder. It is easy for technicains to inspect the working condition of the cooling tower.Technicians can enter into the cooling tower during operation time.

3. Convenient Transportation and Installation

The cooling tower is designed to be standard upper body part and bottom body part,. It is easy for the transportation and installation of the cooling tower

Application

Closed circuit cooling tower is suitable for various kinds of cooling systems with high quality requirements of circulation water, widely used in electric power,chemical industry, food and many other industrial sectors.

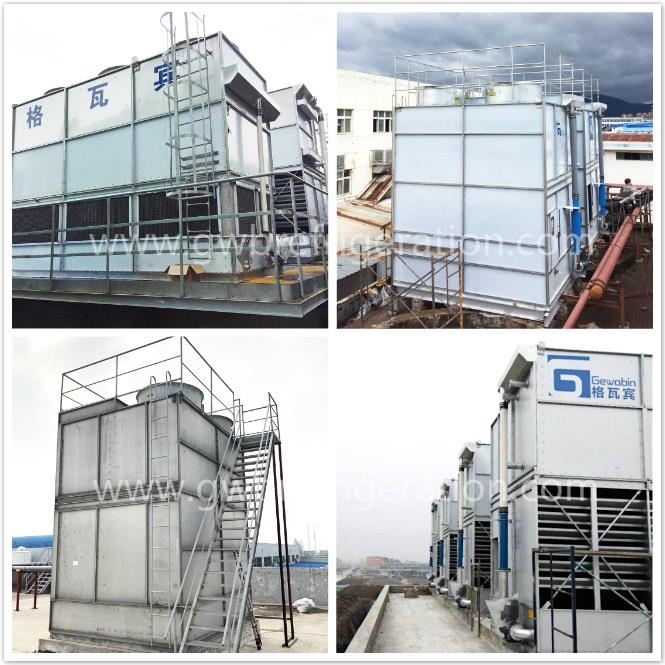

Product Case
