Cooling Tower Chemical Treatment

Chemical treatment closed cooling tower uses water and air as cooling medium. It exchanges the heat with high temperature working fluid,the high temperature working fluid release heat into room temperature fluid.

Description
Technical Parameters
Details
Application

Description

Chemical treatment closed cooling tower uses water and air as cooling medium. It exchanges the heat with high temperature working fluid,the high temperature working fluid release heat into room temperature fluid.It has a water distribution system,cooling coils,pvc fill,drift eliminator and so on.It is widely used in chemical industry,food industry,air-conditioning cooling system, freezing series, injection molding, leather making, foaming, power generation

Product Details

Parts Name	Introduction
Condensing coil	1.Material:Stainless steel(SS304,316,321 2.The design pressure :1.97Mpa3. enhanced corrosion resistance.
Axial Fan	1.Protection:class:IP55,insulation class:F. 2. Advantage:high blowing rate,low damping,low noises,good perormance and high efficiency.
Water Circulating Pump	Motor brand:WEG 1.The Water pump uses a high-quality mechanical seal that is not limited by the steering 2.Motor:special outdoor type motor,the advantage of the motor is low power,high flow,low noise.
PVC Fill	1.Material:PVC honeycomb type stuffing. 2.Use:Extended water cooling time to improve the effect of cooling. 3.Adavantage:aging resistance,low wind resistance and deformation resistance.
PVC Drift Eliminators	1.Material:specially designed non-corroding PVC 2.Advantage:remove moisture effectively from the moist air .It ia convenient to disassemble.

How to choose closed cooling tower model

Selection Guide

1.The cooling water flow G=m3/h

2.Thetempeatue of inlet coling tower T1=℃

3.The tempeatue of outlet coling tower T2=℃

4.The calculation wet bulb temperature of installation location T=℃

The heat rejction calculation od closed cooling tower

Q=1.163xGx(T1-T2)

Technical data:

Model	Axial fan	Water pump	Dimensions	Operating weight
GWBB-90T	4.0kw	4.0kw	357027004670	10870kg
GWBB-100T	4.0k	5.5kw	377027004670	10890kg
GWBB-120T	5.5kw	7.5kw	37703004670	12090kg

Our workshop

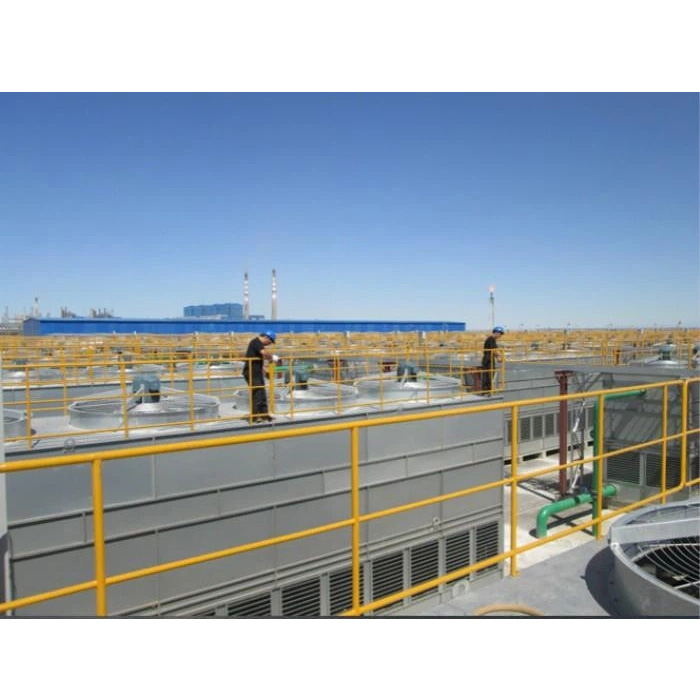

Product Case
