Use soft water circulating cooling; no overheat damage of power supply, silicon control, capacitor, IGBT module, induction coil caused by incrustation.
Introduction

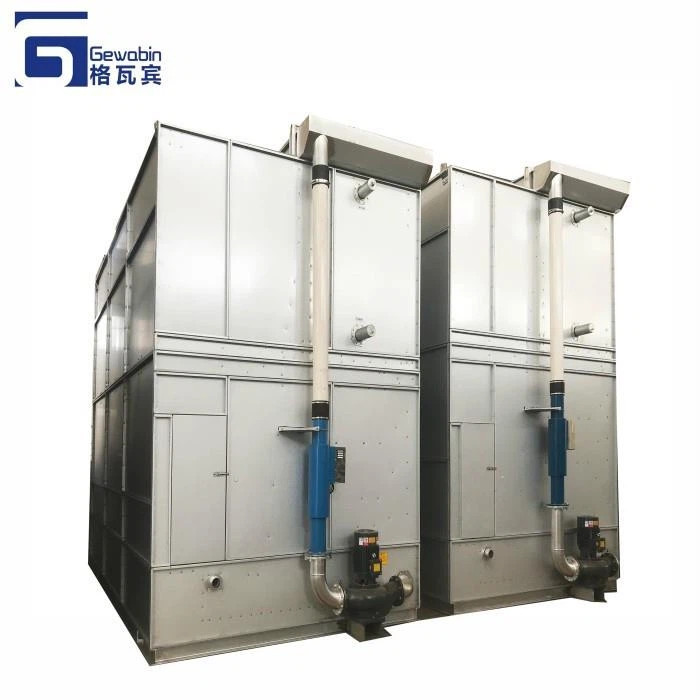

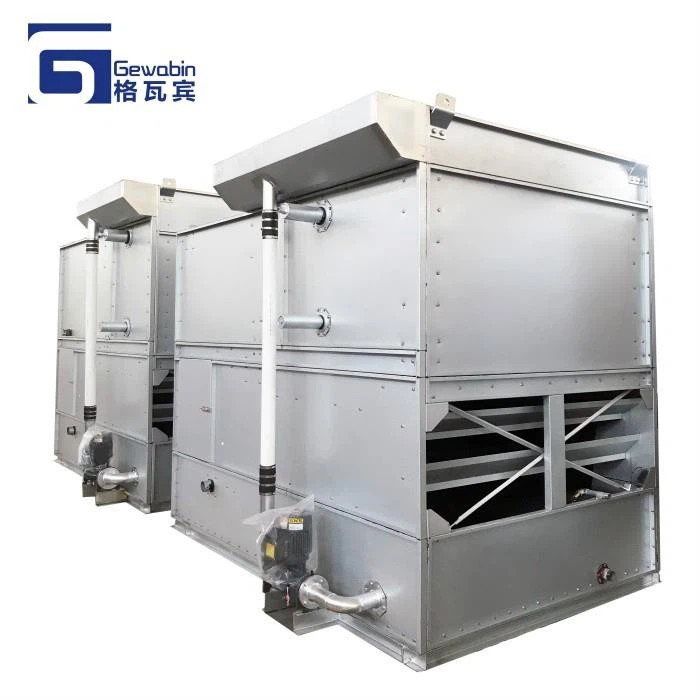

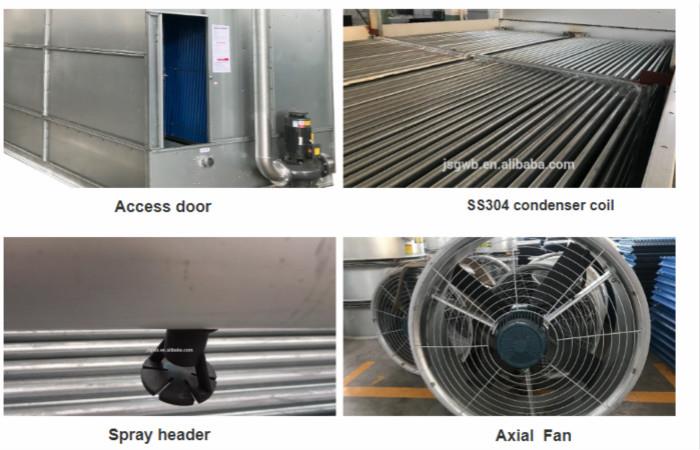

Water Cooling Tower system closed cooling tower is mainly composed of main pump, spray pump, pipe heat exchanger, stainless steel water tank and control box, etc.Closed cooling tower is put pipe heat exchanger in the tower, through the circulation of air, water spray with circulating water heat exchange cooling effect.Because it is a closed cycle, it can guarantee the water quality is not affected by pollution, very good to protect the efficient operation of the main equipment, improve the service life.Outside air temperature is lower, can stop the water spray system, have the effect of water saving and energy saving.
Note:1.We will design as your requirements.
2.The material of Condenser coil and casing is optional.
Main Features:
● Fully enclosed circulating cooling, eliminate the pipeline jams caused by debris.
● Use soft water circulating cooling; no overheat damage of power supply, silicon control, capacitor, IGBT
module, induction coil caused by incrustation.
● No need of water pool and cooling tower, occupies small area, and moves easily.
● High cooling efficiency and low operate cost.
● Low water consumption, meet requirement of environment protection.
How to choose our cooling tower
1.The cooling water flow G=m3/h
2.Thetempeatue of inlet coling tower T1=℃
3.The tempeatue of outlet coling tower T2=℃
4.The calculation wet bulb temperature of installation location T=℃
The heat rejction calculation od closed cooling tower
Q=1.163xGx(T1-T2)
