Jiangsu Gewabin Heat Technology supply OEM Various Kw Evaporative Condenser service! Such us 600kW Evaporative condenser-1800 KW Evaporative Condenser,If replace others brand Ammonia Evaporative condenser,Just send the brand and model to us first,we can make the design basic on brand and model information…
Introduction
Jiangsu Gewabin Heat Technology supply OEM Various Kw Evaporative Condenser service! Such us 600kW Evaporative condenser-1800 KW Evaporative Condenser,If replace others brand Ammonia Evaporative condenser,Just send the brand and model to us first,we can make the design basic on brand and model information.
Blow information are normally required to know for selection of a most proper:tower
| Application: | (Explanations: Where the evaporative condenser will be used for? e.g. for HAVC system, cold storge,food industry,etc. | |
| Refrigerant | Ammonia or Freon | |
| * Total Heat rejection | Kw | Ammonia or freon system(refrigerating capaticay of compressor+Compressor shaft power) |
| Condensing temp | Kw | Condensing temperature of the compressor system |
| * Wet-bulb Temp.: | °C | (Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers) |
| * Power Supply: | (Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer) |
Product Parameter
| 1800kw Evaporative condenser | |||
| Model | GWB-1800 | ||
| Heat rejection | kw | 1800 | |
| Dimension | mm | 4060x3200x4620 | |
| Axial Fan | Qty. | set | 2 |
| blowing rate | m³/h | 78000 | |
| Power | kw | 7.5 | |
| Water circulating pump | Qty. | set | 1 |
| Water volume | m3/h | 170 | |
| Power | kw | 4.0 | |
| Operating weight | / | Kg | 13810 |
| Nh3 Filiing rate | / | Kg | 197 |

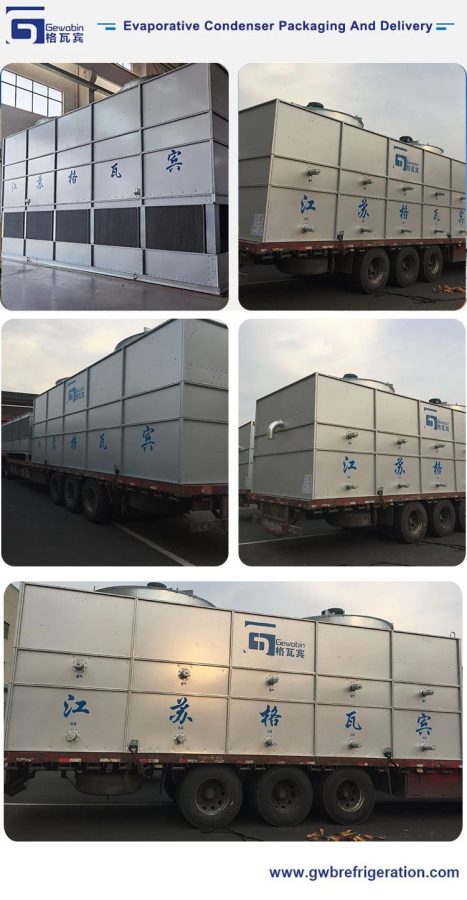

PACKING&DELIVERY
1) Generally, two body parts: upper and bottom boxes;
2) Shipped by one 40GP container,upper and bottom body parts shipped are assembed separately;
3) Packing with plastic film to protect evaporative condensers from swearing in the long distance transportation.
Delivery time: 30 days after payment
