Evaporative condenser is the main heat exchange equipment in the refrigeration system, Jiangsu Gewabin Heat Technology is a manufacturer and trader specializing in the research,design,development and production of Various Kw Evaporative Condenser with well-equipped facilities and…
Introduction
Evaporative condenser is the main heat exchange equipment in the refrigeration system, Jiangsu Gewabin Heat Technology is a manufacturer and trader specializing in the research,design,development and production of Various Kw Evaporative Condenser with well-equipped facilities and strong technical force.
Product parameter

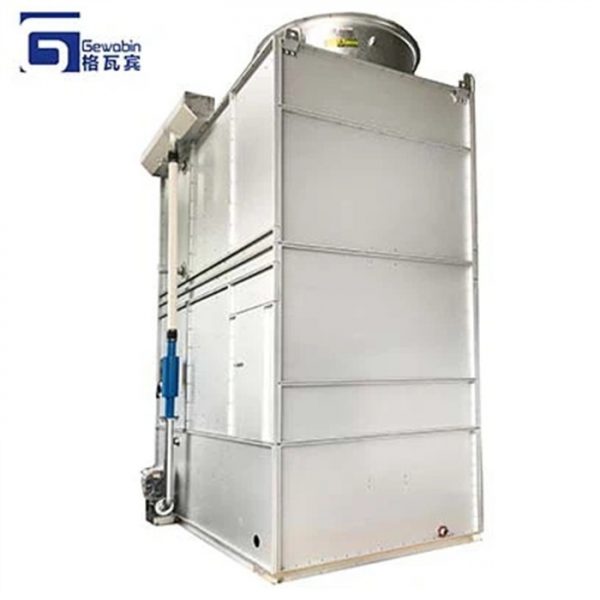

| 700 Kw Evaporative Condenser | |||
| Model | GWB-700 | ||
| Heat rejection | kw | 700 | |
| Dimension | mm | 1930x3000x4280 | |
| Axial Fan | Qty. | set | 1 |
| blowing rate | m³/h | 78000 | |
| Power | kw | 5.5 | |
| Water circulating pump | Qty. | set | 1 |
| Water volume | m3/h | 65 | |
| Power | kw | 1.5 | |
| Operating weight | / | Kg | 5890 |
| Nh3 Filiing rate | / | Kg | 79 |
Main parts
| Name | Introduction |
| Condensing coil | 1.Material:high-quality stainless oval steel tube 2.The design pressure :1.97Mpa 3.Stainless steel 304.316,321 coil can enhanced corrosion resistance. |
| Axial Fan | 1.Protection:class:IP55,insulation class:F. 2. Advantage:high blowing rate,low damping,low noises,good perormance and high efficiency. |
| Water Pump | Motor brand:Siemens/WEG
1.The Water pump uses a high-quality mechanical seal that is not limited by the steering |
| Water spray System | 1.ABS basket type spray nozzle has a large flow, no clogging, remains clog free while providing even and constant water providing the industry's best performing
2.Non-corrosive, maintenance-free water distribution system 3.Provides furthest coil coverage to improve heat transfer 4.Easy to disassemble and clean |
| PVC Fill | 1.Material:High temperature resistance PVC 2.Use:Extended water cooling time to improve the effect of cooling. 3.Adavantage:aging resistance,low wind resistance and deformation resistance. |
| Drift eliminator | 1.Material:specially designed non-corroding PVC
2.Advantage:remove moisture effectively from the moist air .It ia convenient to disassemble. |

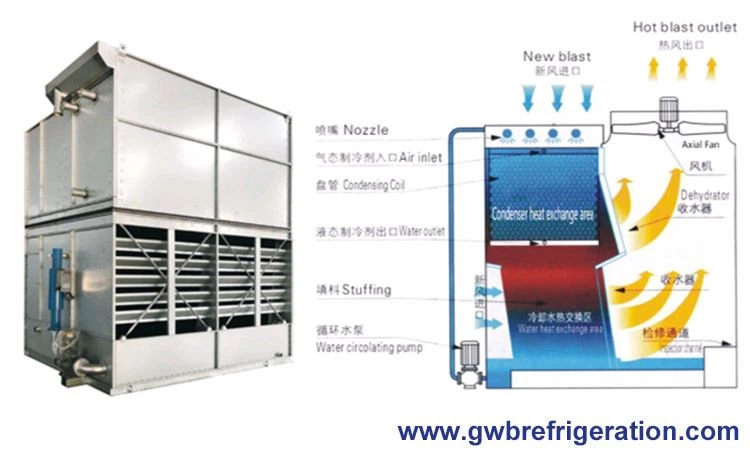

Working principle
The principle of 700kw Evaporators And Condensers: the compressor discharge of the superheated high-pressure refrigerant gas in the refrigeration system through the condensation pipe in the evaporative condenser, so that the high temperature gas refrigerant and the discharge of water and air outside the pipe heat exchange. That is, the gaseous refrigerant is gradually condensed into liquid refrigerant from the upper port into the drain pipe and gradually condensed from top to bottom. The super wind of the supporting fan makes the spray water completely uniformly covered on the surface of the coil, and the water borrows the wind, which greatly improves the heat exchange effect. Temperature-raising spray water from part to gas, the use of water vaporization potential heat by the wind to take away a large amount of heat, hot air droplets are intercepted by high-efficiency dehydrator, with the rest of the absorption of heat water, scattered in the PVC water sheet heat exchange layer, the air flowing through cooling, temperature reduction, into the water tank, recirculated water pump to continue circulation. The moisture evaporated into the air is automatically replenished by the water level regulator.
Quality control
Ø Obtained ISO9001,CE and other certificate
Ø Strict contract auditing involved all departments to assure the feasibility of each order.
Ø Process design and validation before bulk production.
Ø Strictly control on all raw and auxiliary materials, All raw materials reach the world advanced level.

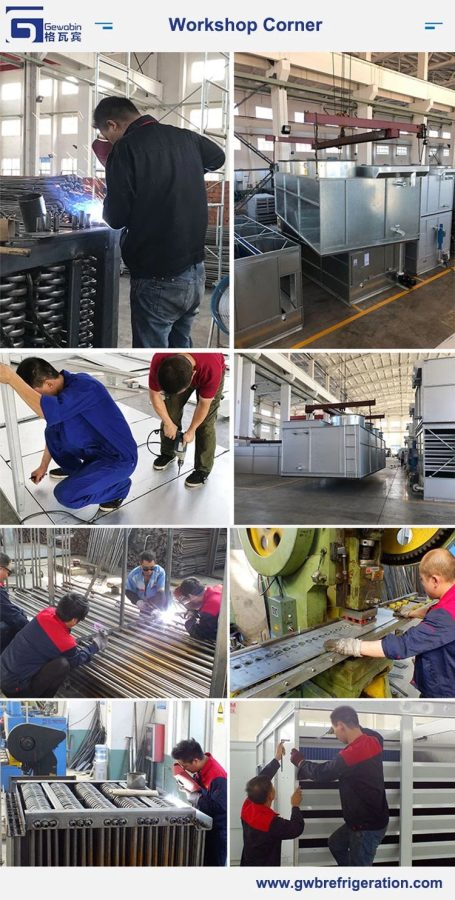

Ø On-site inspection to all processes.
Ø 100% inspection of finished products before shipment.
