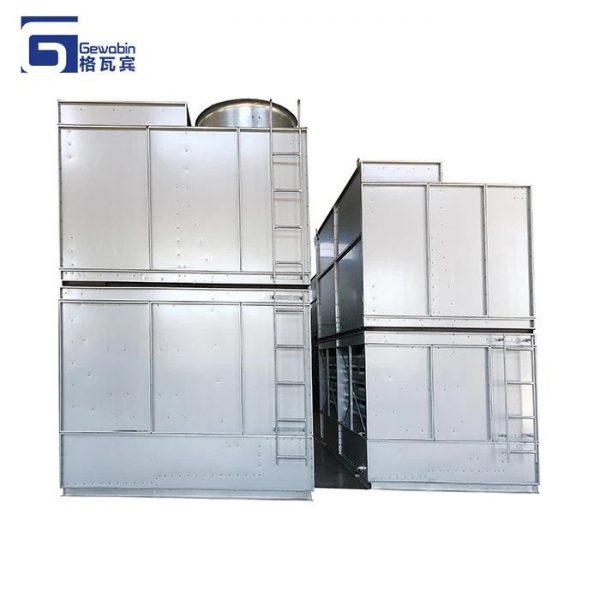

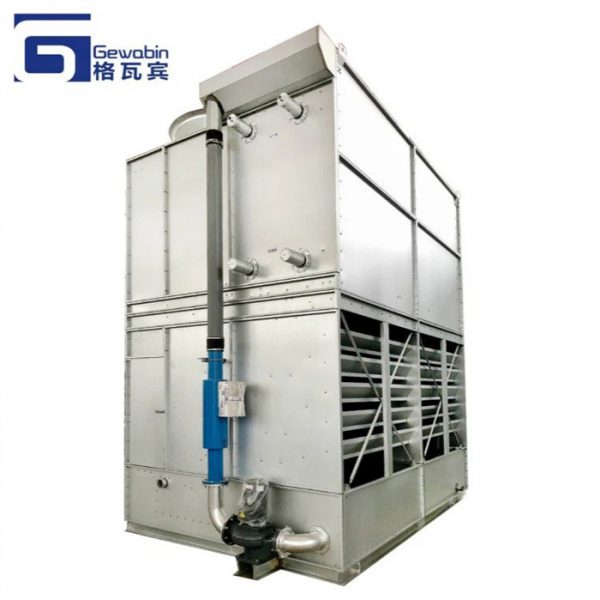

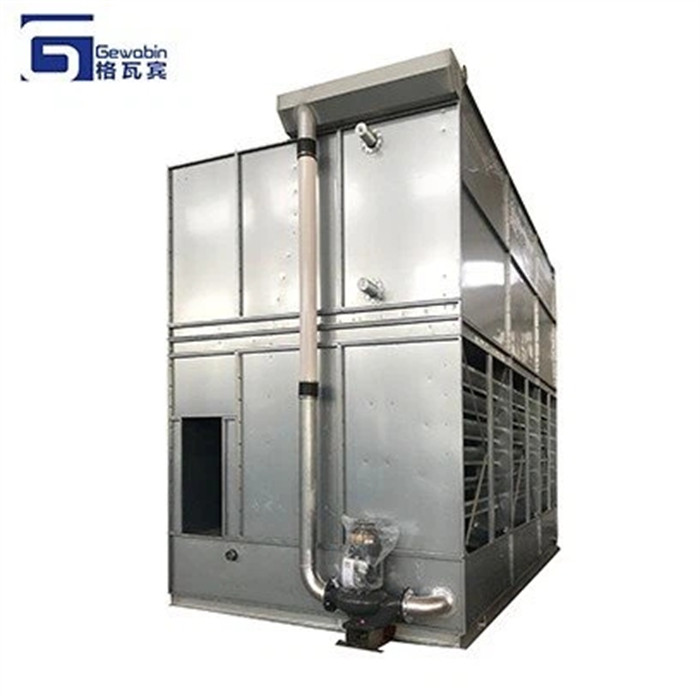

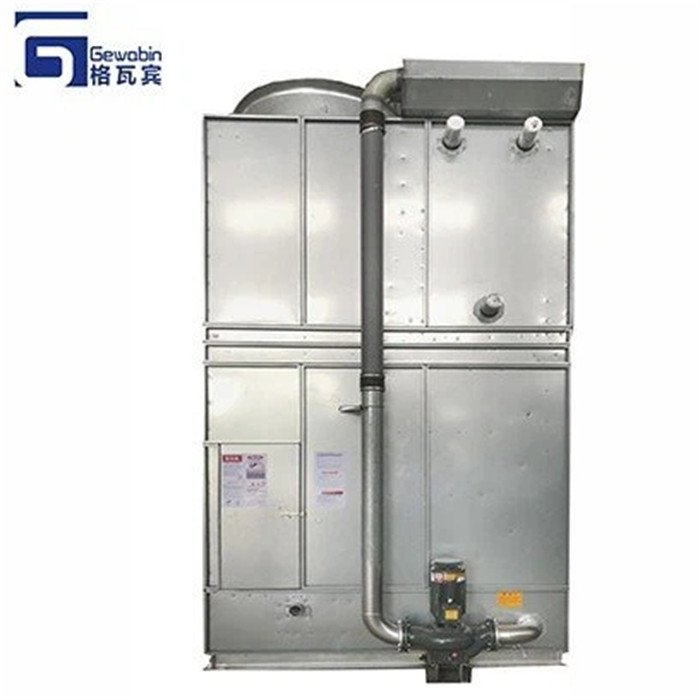

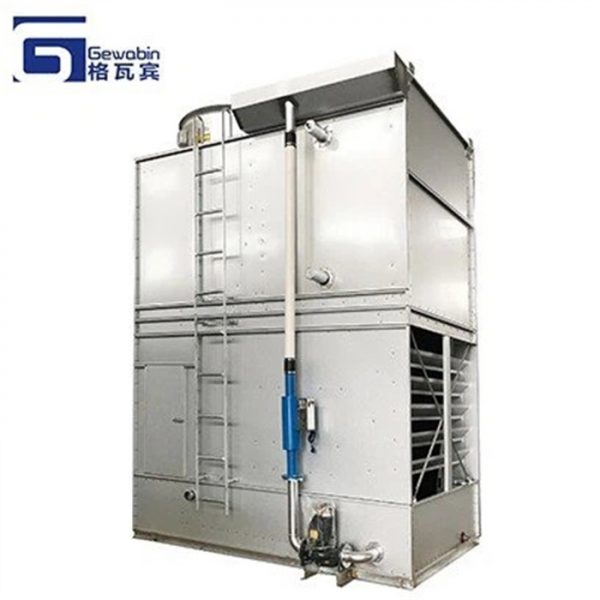

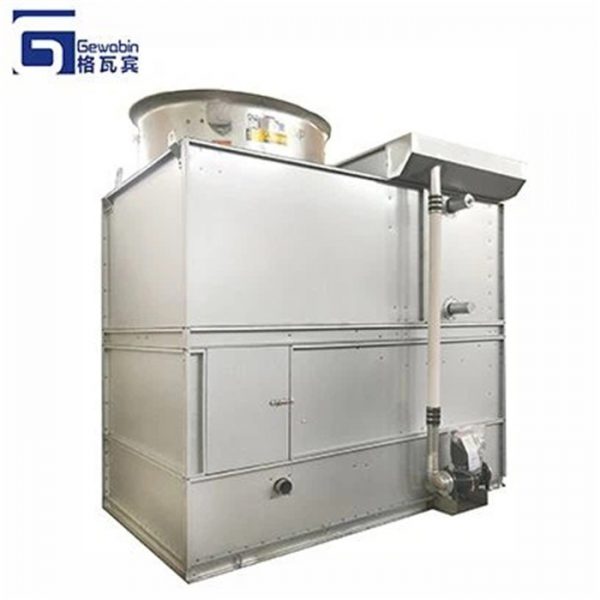

Combined Flow 900kw Evaporative Condenser Produced by Gewabin Heat Technology,Condensing coil adopt special longer steel pipe, test strictly under 2.5MPa pressure in the water, near 600 degrees high temperature hot dip galvanizing. Technical Data Product Advantages
Introduction
Combined Flow 900kw Evaporative Condenser Produced by Gewabin Heat Technology,Condensing coil adopt special longer steel pipe, test strictly under 2.5MPa pressure in the water, near 600 degrees high temperature hot dip galvanizing.
Technical Data
| Specification of 900kw Freon System Evaporative Condenser | |
| Capacity: | 900kw |
| Refrigerant | Freon |
| Weight: | 6210kg |
| Fan type | Axial fan |
| Axial fan: | 7.5kw |
| Blowing Rate: | 100000m³/h |
| Motor: | SIEMENS |
| Water pump power: | 2.2kw |
| Motor | SIEMENS/WEG |
| Water Flow： | 87m³/h |
| Casing material： | Hot Dip Galvanizing /Stainless Steel |
| Tube material： | Hot Dip Galvanizing /Stainless Steel |
| Application | Cemical industry, industrial refrigerating ,medicine ,food industry , elctronics and hotels,theaters,etc. |
Product Advantages

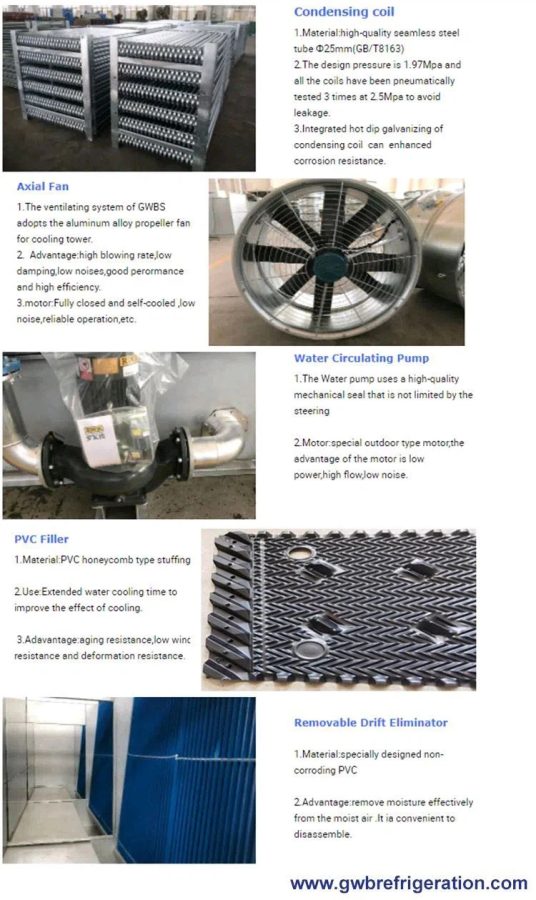

1． High efficiency and low noise axial flow fan with a high range, to prevent hot air reflux.
2. Water pump uses small power, large flow, low lift designation, and according to customer requirements assemble descaling instrument.
3． The high-efficiency PVC water drift eliminator can effectively separate the water droplets remaining in the discharged air flow, and the circulating water rate is less than 0.001%.
