Ammonia Refrigeration Evaporative Condenser Introduction The evaporative condenser is a heat exchange device used for cooling the cold storage.It is made up of components such as fan, condensing coil, heat exchange sheet and box .The evaporative condenser is widely applied to Ice-store,Chemical…
Ammonia Refrigeration Evaporative Condenser Introduction
The evaporative condenser is a heat exchange device used for cooling the cold storage.It is made up of components such as fan, condensing coil, heat exchange sheet and box .The evaporative condenser is widely applied to Ice-store,Chemical industry,Food industry and Electronic industry, etc.

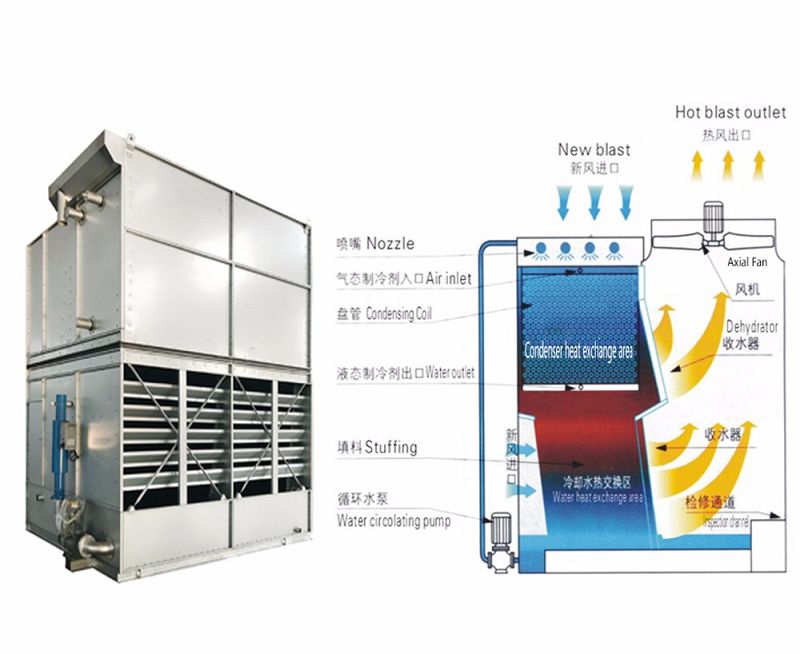

Principle of Operation
The vapor to be condensed is circulated through a condensing coil, which is continually wetted on the outside by a recirculating water system.Under the action of the axial flow fan, the inside of the condensation chamber is in a negative pressure state.Air is simultaneously blown upward over the coil, causing a small portion of the recirculated water to evaporate. This evaporation removes heat from the coil, cooling ,and condensing the vapor in the coil.
Ammonia Refrigeration Evaporative Condenser Details
|

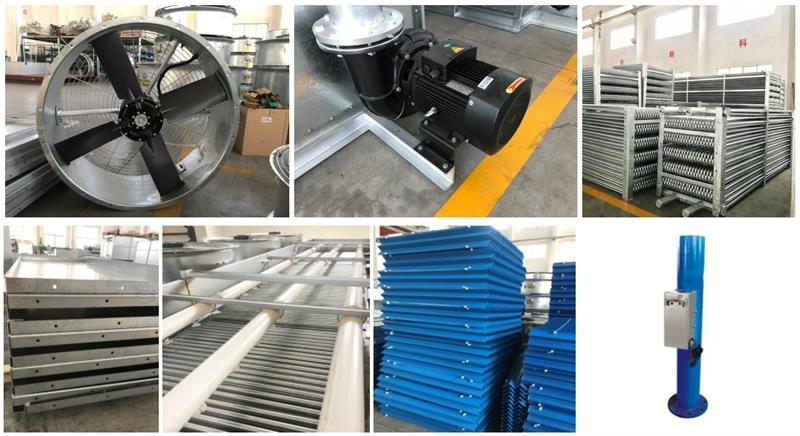

Main Components |
|
|
Coil |
Made of high-quality seamless steel pipes. The coil unit are galvanized entirely to improve the corrosion resistance ability and extend the service time. The coils can also be made by SS-304/316L stainless steel. |
|
Spray Pump |
Sealed by top quality rotary no-limited machinery seal, no leaking, long lifecycle, small horse power, large flow volume, low noise and high performance. |
|
Fan |
Aluminum alloy axis-flow type |
|
Shell |
SS-304/316L or imported Aluminum-zinc alloy plate. |
|
Electric Water Treatment Device |
Clear the circuit water, effectively avoid the scale forming on the surface of coils and PVC fills. |
|
Removable Drift Eliminator |
PVC material; Make sure that the water loss rate will be less than 0.005% |
|
Filler |
100% Original Material PVC Infill, special design with great cooling effect |
Quality Assurance
★ Obtained ISO9001,CE and other certificate
★ Strict contract auditing involved all departments to assure the feasibility of each order.
★ Process design and validation before bulk production.
★ Strictly control on all raw and auxiliary materials, All raw materials reach the world advanced level.
★ On-site inspection to all processes.
★ 100% inspection of finished products before shipment.
COMPANY POFILE
Jiangsu Gewabin Heat Technology Co., Ltd is a manufacturer and trader specializing in the research, design, development and production of refrigeration with well-equipped facilities and strong technical force.
We have domestic and foreign technology development products include evaporative condenser, closed circuit cooling tower, air coolers, compressor and evaporator.
We can also customize products according to customers' requirements, and we provide processing services and OEM products.
