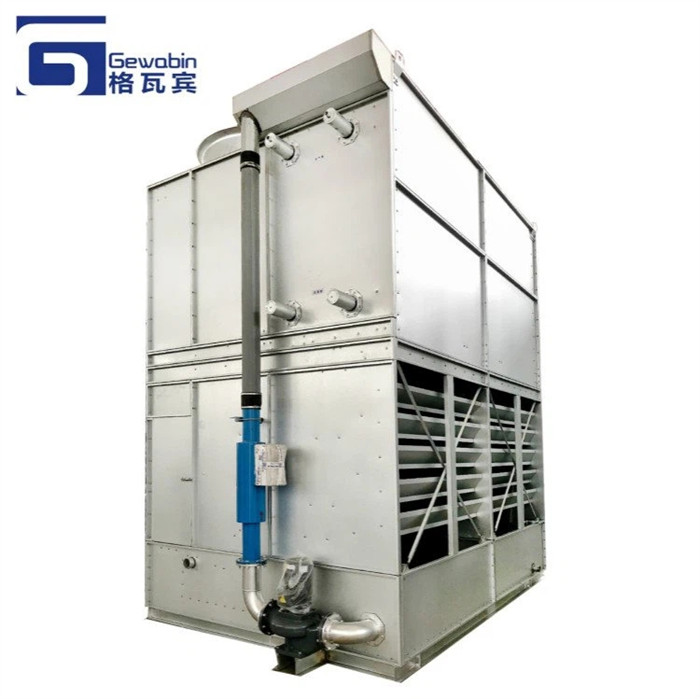

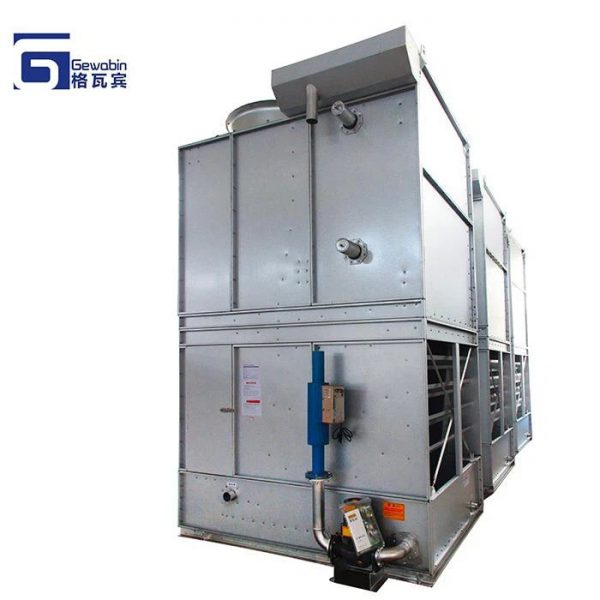

Compressor condenser
Gewabin Brand Evaporative Condenser is high efficient type evaporative condenser, with optimized structure design, and strict heat transfer performance test. It is usually matched with the compressor. The evaporative condenser actually combines the cooling tower and the shell and tube condenser in the same equipment. It removes the sensible heat transfer process of condensate water necessary in the cooling tower/shell and tube condenser system. This allows the condensing temperature to be substantially close to the design wet bulb temperature, thereby minimizing compressor power consumption.
MAIN CHARACTERISTICS
1. Single equipment capacity range 150kw to 3000kw
2. Modular structure design, suitable to container shipping
3. Factory assembled for maximal installation convenience
4. Compact structure for minimal footprint
5. Fully sealed design, anti windy, sandy, dirty, sunlight
6. Eco-Friendly energy and water saving, low drift rate
TECHNICAL SPECIFICATIONS
| Type | Size（mm） | Heat rejection
(kw) |
Fan power(kw) | Water pump power(kw) | Operating weight(kg) |
| GWBS-145 | 1820x2210x2780 | 145 | 1.5 | 0.75 | 2685 |
| GWBS-160 | 1820x2210x2780 | 160 | 2.2 | 0.75 | 2690 |
| GWBS-180 | 1820x2210x2780 | 180 | 1.5 | 0.75 | 2700 |
| GWBS-200 | 1820x2210x2780 | 200 | 1.5 | 0.75 | 2870 |
| GWBS-220 | 1820x2210x2780 | 220 | 2.2 | 0.75 | 2880 |
| GWBS-240 | 1820x2210x2780 | 240 | 3.0 | 0.75 | 3050 |
| GWBS-260 | 1820x2350x2780 | 260 | 1.5 | 0.75 | 2890 |
| GWBS-280 | 1820x2350x2780 | 280 | 2.2 | 0.75 | 3060 |
| GWBS-300 | 1820x2350x2780 | 300 | 3.0 | 0.75 | 3060 |
| GWBS-340 | 1820x2700x2780 | 340 | 2.2 | 1.1 | 3660 |
| GWBS-380 | 1820x2700x2780 | 380 | 3.0 | 1.1 | 3670 |
| GWBS-400 | 1820x2700x2780 | 400 | 4.0 | 1.1 | 3680 |
| GWBS-430 | 1930x2350x4280 | 430 | 4.0 | 1.1 | 2685 |
| GWBS-475 | 1930x2350x4280 | 475 | 4.0 | 1.1 | 2690 |
| GWBS-495 | 1930x2350x4280 | 495 | 5.5 | 1.1 | 2700 |
| Note: For R717 refrigerant, the 'Rated Capacity' based on standard condition: condensing temp. 36egC, wet bulb temp. 26egC. | |||||

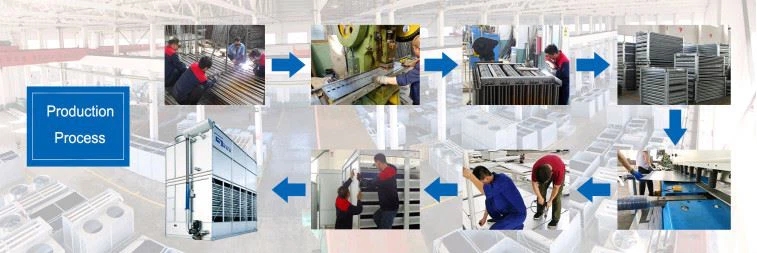

Production of compressor evaporative condenser

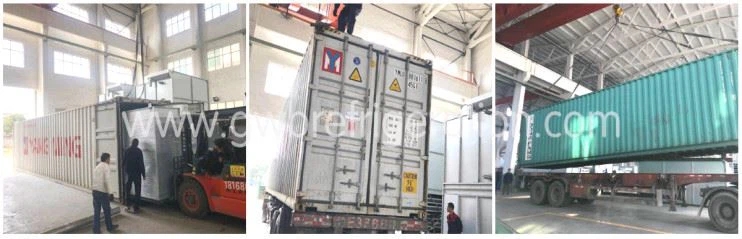

DELIVERY & SHIPPING

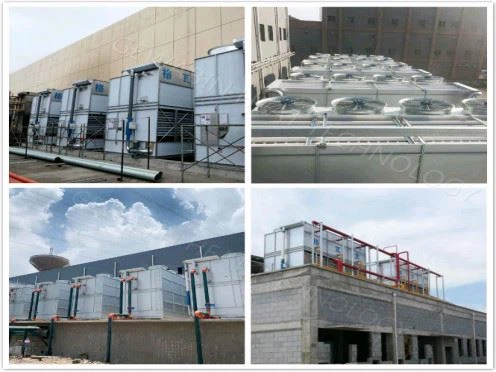

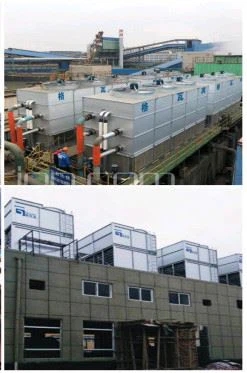

PROJECT CASES
